Technical specifications
TECHNICAL DATA
Energy efficiency class WIKING? Automatic?
A
WIKING? Automatic?
Yes
Efficiency (%)
78.0
Nominal heat output (kW)
4.9
Smokeoutlet (?)
6″
Chimney draught, recommended (Pa)
12.0
PRODUCT MEASUREMENTS (CM)
Height
78.2
Width
46.8
Depth
35.5
Combustionchamber
35/32
WEIGHT (KG)
Weight
79.0
CONNECTION MEASUREMENTS (CM)
From floor on a plinth, top
74.0
FRESH AIR KIT
Combustion air system can be mounted, back (? 100 mm)
Yes
Combustion air system can be mounted, back (? 100 mm)
Yes
DISTANCE TO COMBUSTIBLE MATERIALS (CM)
Floor
7.0
DISTANCE TO COMBUSTIBLE MATERIALS, INSULATED FLUE GAS PIPE (CM)
Behind
10.0
Side
52.0
Sides, in front of the stove
52.0
In front
90.0
Furnishing in front
90.0
Corner, 45?
38.0
DISTANCE TO COMBUSTIBLE MATERIALS, UNINSULATED FLUE GAS PIPE (CM)
Behind
10.0
Side
52.0
Sies, in front of the stove
52.0
In front
90.0
Furnishing in front
90.0
Corner, 45?
38.0
APPROVALS
EN 13240
Yes
NS 3058/3059
Yes
DEFRA Exempt
Yes
ECODESIGN Compliant. Yes
3-5Kw, Free Standing, Log Burning Stoves, Mordern
Wiking Miro 1
£2,045.00
Through WIKING Miro?s broad side glass and the large glass pane in the sturdy cast iron door, there is ample opportunity to watch the flames in the open and bright combustion chamber. Slightly slanted angles at the back enhance the looks of WIKING Miro – not only on an even wall, but also in a corner.

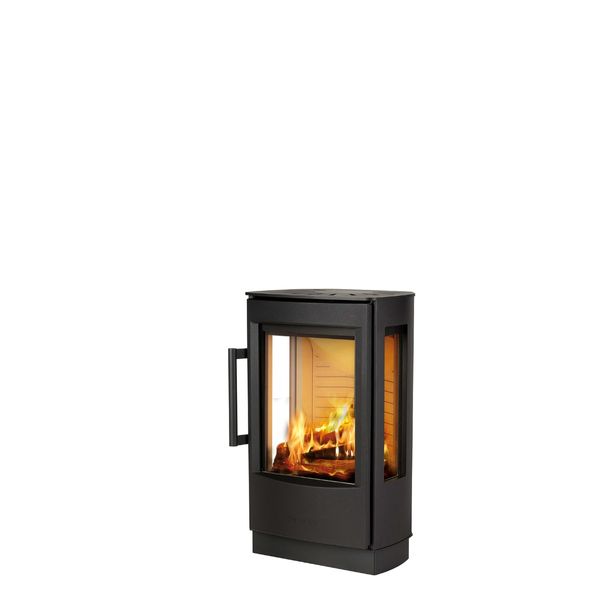

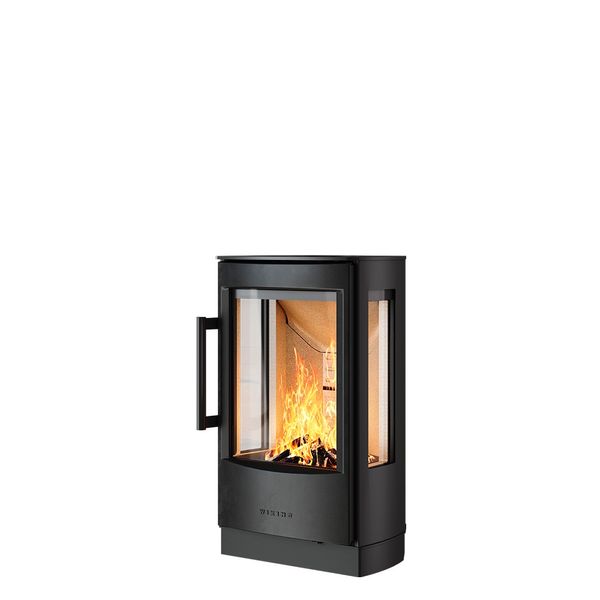

WIKING Miro comes in two sizes. The low WIKING Miro 1 and 2, which can be positioned on a wall or placed on the floor on a 7 cm high plinth, or the taller, detached WIKING Miro 3 and 4.
Available on back-order
| Weight | 79 kg |
|---|
Brand
WIKING
