WIKING Mini 2 Wood Burning Stove — Four Configurations, One Exceptional Stove
Compact stoves often ask you to compromise. The WIKING Mini 2 wood burning stove does not. Built in Denmark by HWAM with the same precision and design intelligence that runs through the entire WIKING range, it delivers a 4.5kW nominal output, A+ rated efficiency, and the award-winning WIKING® Automatic™ combustion system — all in a stove small enough to suit rooms that larger models simply cannot fit into. Better still, it comes in four distinct configurations so you can choose the mounting style that works best for your space and your interior. The short legs model burns live in our showroom, and the long legs model is on display too — so come in and see them both for yourself before you make your decision.
WIKING® Automatic™ — Combustion That Manages Itself
The standout feature of the Mini 2 is the WIKING® Automatic™ combustion system. Rather than relying on manual air control, WIKING® Automatic™ regulates the air supply automatically throughout the burn cycle — maintaining the most efficient combustion possible at all times without any adjustment from you. As a result, you get a cleaner, more consistent fire, fewer deposits in the flue, and better fuel economy from every load of wood you put in. The system contributes directly to the stove’s A+ energy efficiency class, which is among the highest ratings available for a wood burning stove of this output.
Furthermore, the Mini 2 is DEFRA exempt, which means you can burn wood in it legally in a smoke control area. It also holds HETAS approval and is fully Ecodesign compliant — so it meets the most demanding environmental and safety standards currently in place in the UK.
Four Configurations — Choose the One That Suits Your Room
The Mini 2 is available in four distinct mounting configurations, each suited to a different installation scenario. Because the core stove — the firebox, output, combustion system, and approvals — remains identical across all four, your choice comes down entirely to how you want the stove to sit in the room.

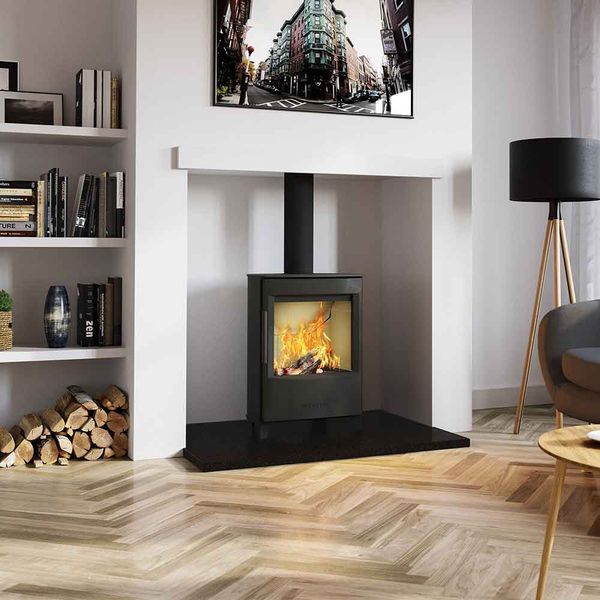

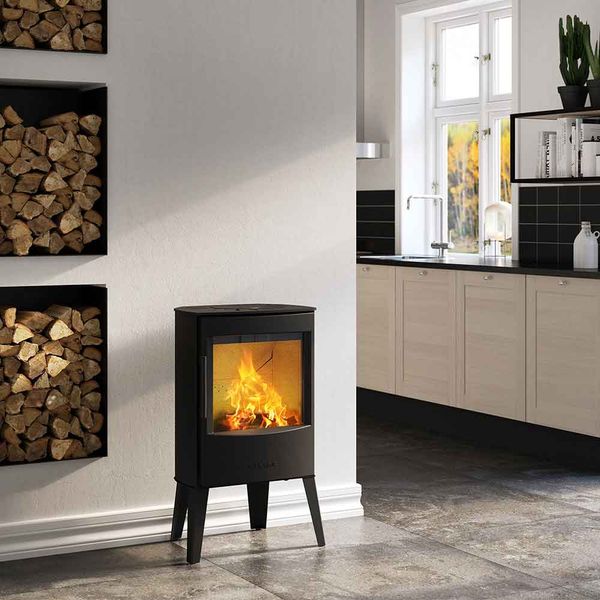

The short legs version sits lower to the ground, giving the stove a more grounded, traditional presence that works particularly well in rooms with lower ceilings or in a fireplace recess. The long legs version raises the stove higher, creating a lighter, more elevated look that suits contemporary interiors and open-plan spaces where the firebox needs to sit at a comfortable viewing height. The plinth configuration gives the stove a solid, architectural base — a clean, block-like look that sits naturally against a flat wall and works well in more minimal, modern settings. Finally, the wall mounted version lifts the stove completely off the floor, which keeps the space beneath it clear and creates a striking floating effect that is genuinely dramatic in the right room. It also requires a minimum floor clearance of 22cm, so factor that into your planning.
Available in Black or Grey Steel
All four configurations of the Mini 2 come in a choice of black or grey steel cladding. Both finishes are clean and hardwearing, sitting comfortably across a wide range of interior styles — from the warm tones of a traditional living room to the cooler palette of a contemporary open-plan space. The combustion chamber measures 35cm x 32cm, and an optional fresh air kit is available for all variants, making the Mini 2 compatible with modern, well-sealed homes where air tightness might otherwise affect draw and performance.
To find out more about what a professional installation involves, visit our installation process page. For full technical documentation directly from the manufacturer, visit the official HWAM product pages for the Mini 2 Short Legs, Mini 2 Long Legs, Mini 2 Plinth, and Mini 2 Wall Mounted.
WIKING Mini 2 — Technical Specifications
Core Specifications — All Variants
The following specifications apply equally to all four Mini 2 configurations.
| Specification | Detail |
|---|---|
| Nominal Output | 4.5 kW |
| Efficiency | 82% |
| Energy Efficiency Class | A+ |
| Combustion System | WIKING® Automatic™ |
| Smoke Outlet Diameter | 5″ / 6″ |
| Recommended Chimney Draught | 12.0 Pa |
| Combustion Chamber | 35.0 cm x 32.0 cm |
| Steel Colour Options | Black / Grey |
| External Air Intake (rear, Ø 100mm) | Available as additional purchase — all variants except plinth (rear only) |
| External Air Intake (bottom, Ø 100mm) | Available as additional purchase — all variants |
| DEFRA Exempt | Yes |
| HETAS Approved | Yes |
| Ecodesign Compliant | Yes |
| EN 16510 | Yes |
| BImSchV Stufe 2 | Yes |
| Distance to Combustibles — In Front | 100 cm |
| Distance to Combustibles — Side | 32.5 cm |
| Distance to Combustibles — Behind (insulated flue) | 7.5 cm |
| Distance to Combustibles — Behind (uninsulated flue) | 12.5 cm |
| Distance to Mantelpiece | 45.0 cm |
| Distance to Ceiling | 75.0 cm |
Dimensions & Weights — By Configuration
| Specification | Short Legs | Long Legs | Plinth | Wall Mounted |
|---|---|---|---|---|
| Height | 65.2 cm | 83.2 cm | 60.8 cm | 59.2 cm |
| Width | 46.8 cm | 51.3 cm | 46.8 cm | 46.8 cm |
| Depth | 35.6 cm | 37.1 cm | 35.6 cm | 35.6 cm |
| Weight (steel cladding) | 72 kg | 74 kg | 72 kg | 71 kg |
| Flue Connection Height | 61.0 cm from floor | 79.0 cm from floor | 56.6 cm from floor | 55.0 cm from wall to centre of top outlet |
| Minimum Floor Clearance | — | 0 cm | — | 22.0 cm* |
| Showroom Status | Live burning model | Display model | — | — |
* Wall mounted model: the 22cm minimum floor clearance is met when the stove is hung at the required height as per installation guidelines.
