Mendip Ashcott Wood Burning Stove

Mendip Ashcott Wood Burning Stove

The Mendip Ashcott Wood Burning Stove combines elegant British design with efficient, EcoDesign-ready performance, making it an excellent choice for both traditional and contemporary homes. With its beautifully contoured cast iron door, sculptured legs, and slim convection top plate, the Ashcott offers timeless styling while incorporating modern features that improve everyday usability.

Designed to deliver comfortable heat for medium-sized living spaces, the Ashcott produces a nominal heat output of 4.7kW with an impressive efficiency rating of 80.3%. A large ceramic glass window provides a clear view of the flames, while the magnetic door closure, stainless steel handle, and refined air control create a premium feel that reflects the stove’s quality craftsmanship.

Whether you choose the standard model, the practical Logstore version, or the striking Pedestal design, the Ashcott range offers the same dependable performance with installation options to suit a variety of interiors.

Elegant design with three installation options

One of the strengths of the Mendip Ashcott range is its flexibility. Each model shares the same firebox and heating performance while offering a different visual style to complement your home.

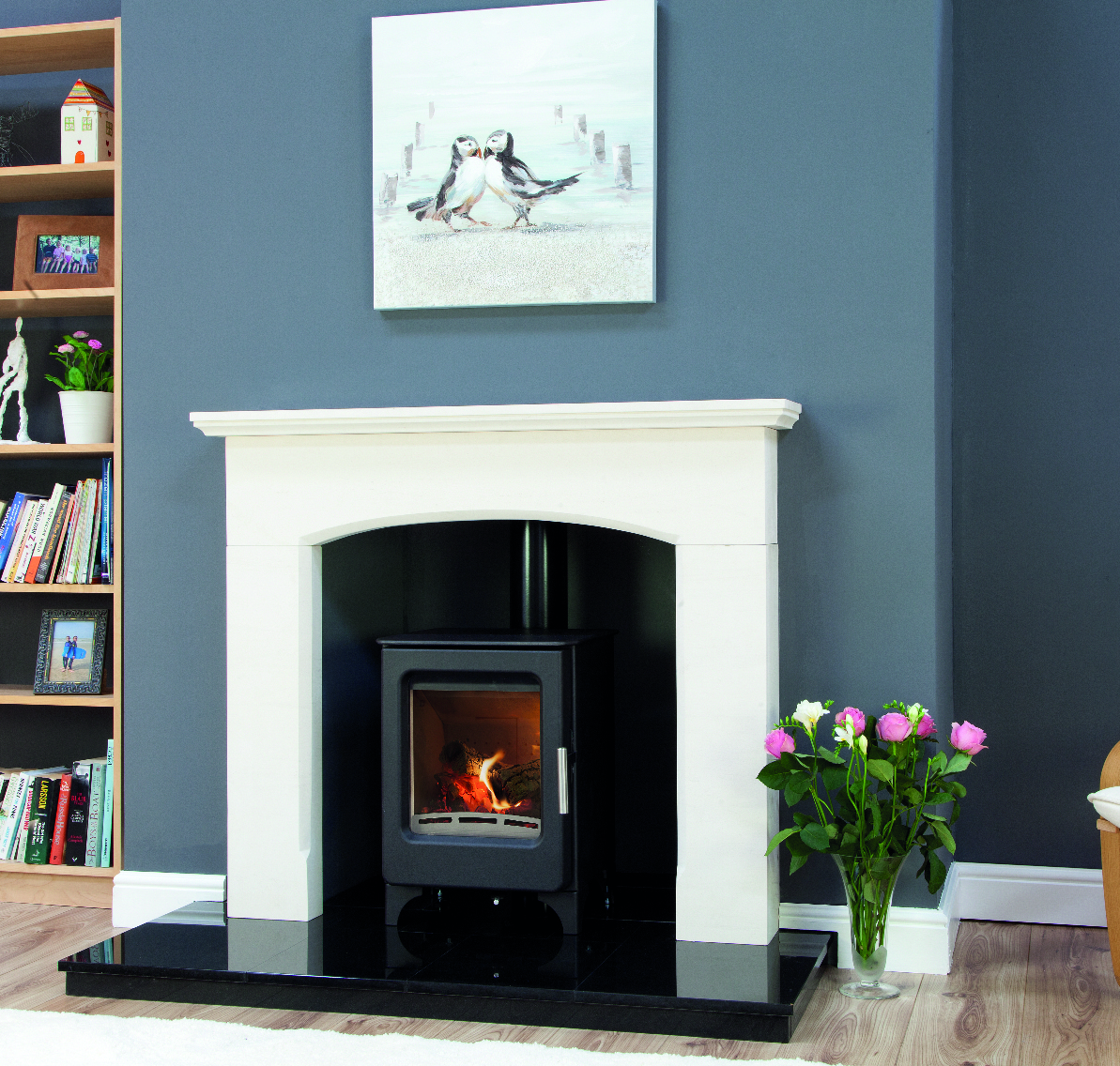

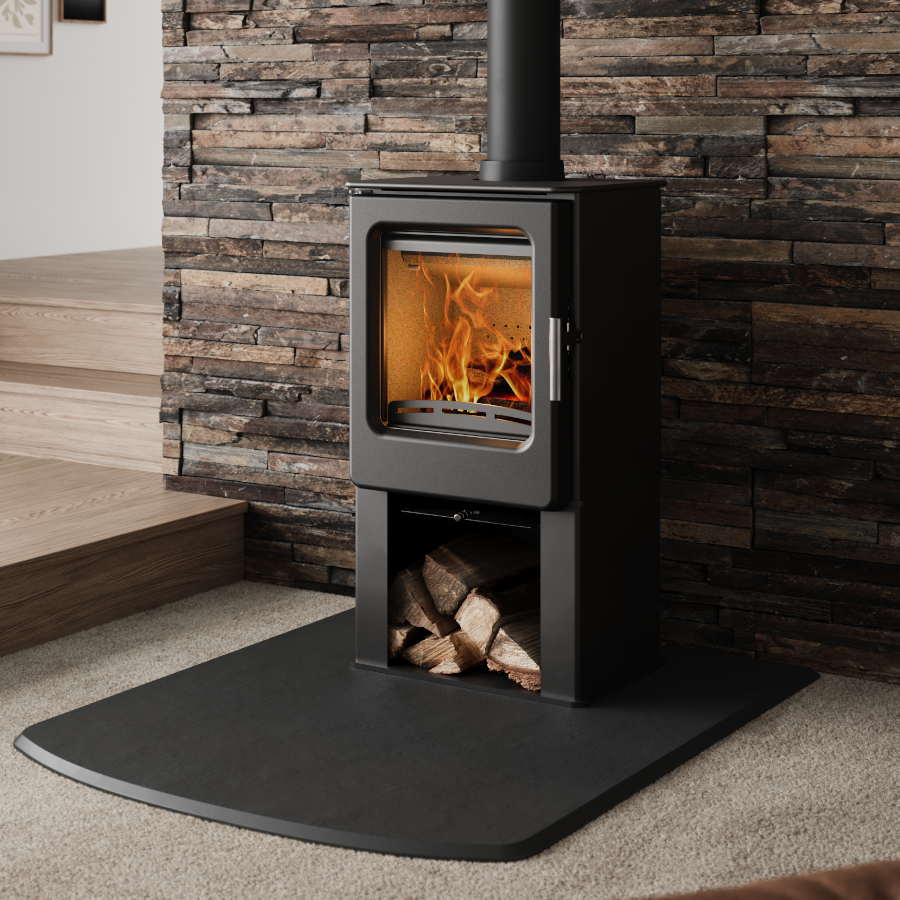

The standard Ashcott features classic cast iron legs, creating a balanced appearance that works beautifully within both period properties and modern living spaces. For homeowners who prefer practical storage, the Ashcott Logstore incorporates an integrated log compartment beneath the stove, keeping firewood neatly organised and close to hand while adding extra height and presence.

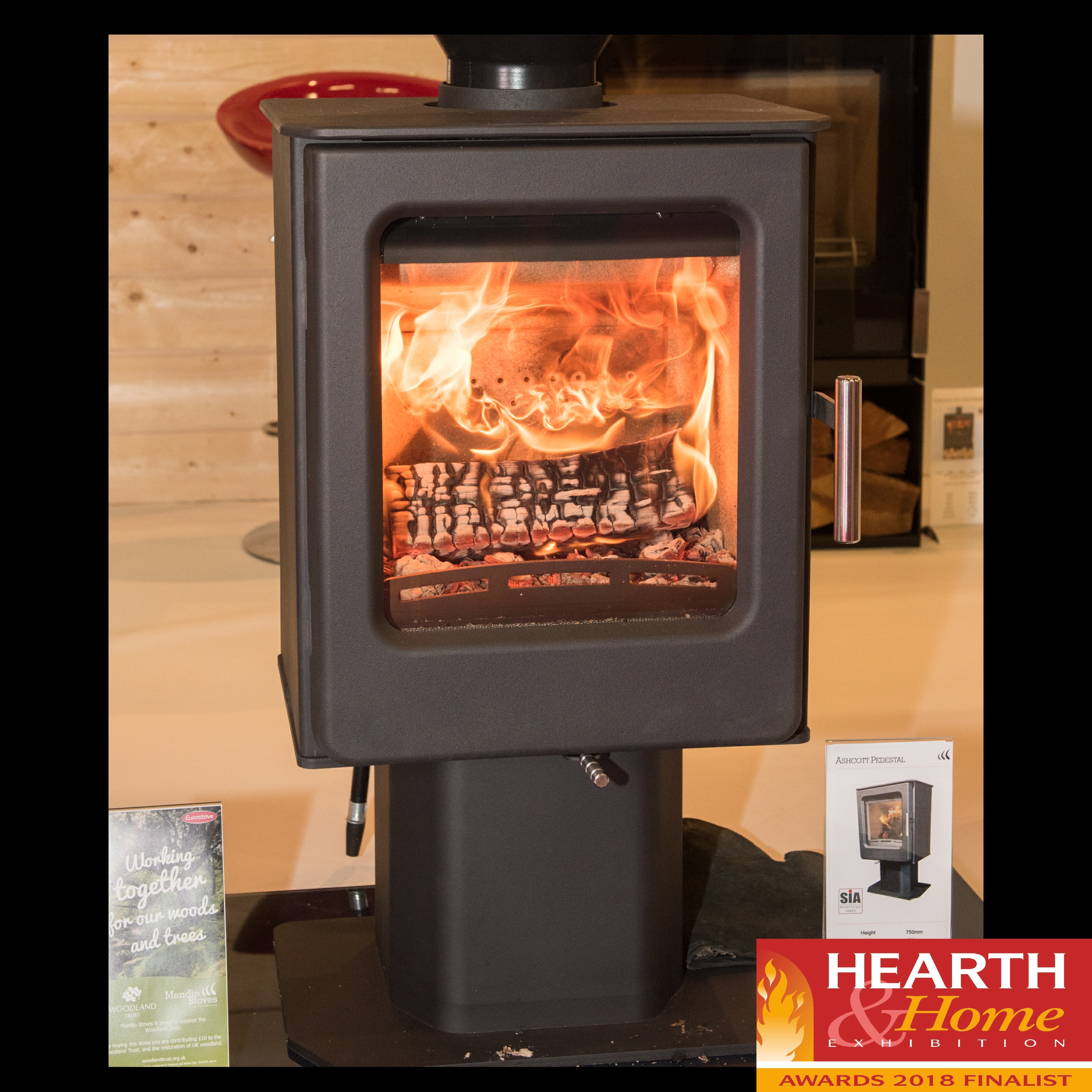

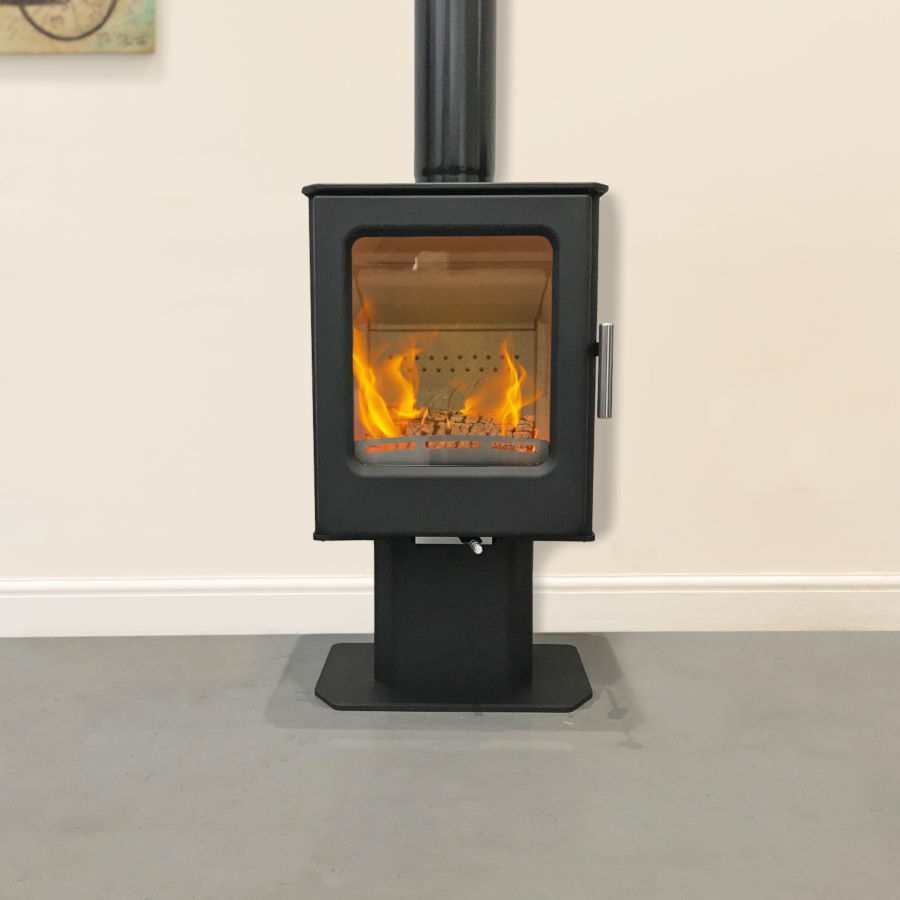

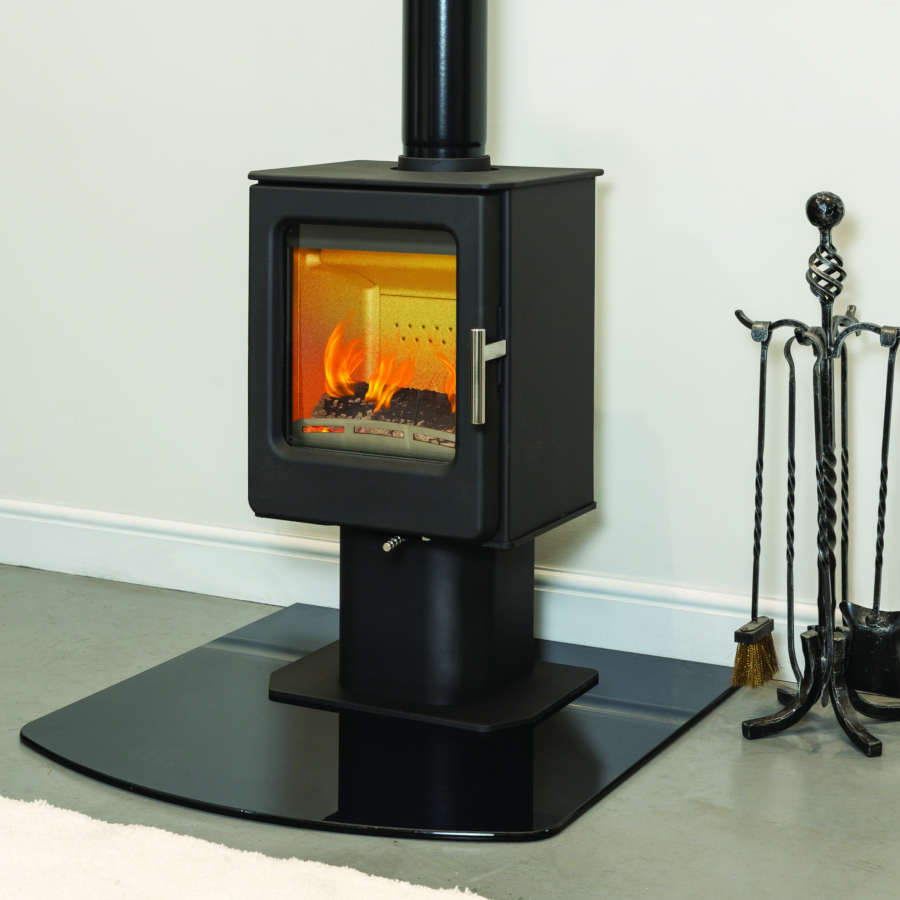

The Ashcott Pedestal offers a more contemporary aesthetic by raising the stove on a sleek pedestal base, creating a distinctive focal point that suits modern interiors and open-plan living areas.

Whichever version you choose, the large viewing window ensures the fire remains the centre of attention, bringing warmth and atmosphere into the room.

Mendip Ashcott Wood Burning Stove Efficient heating with EcoDesign performance

The Mendip Ashcott has been developed to provide efficient everyday heating while meeting the latest environmental standards.

With a nominal heat output of 4.7kW, it is ideally suited to medium-sized rooms, delivering comfortable warmth without overwhelming the space. Its 80.3% efficiency helps maximise heat from every log, while EcoDesign compliance ensures lower emissions and cleaner combustion.

The stove is also approved for use in UK Smoke Control Areas, giving homeowners greater flexibility when installing a wood-burning stove in urban locations.

Inside the firebox, durable vermiculite lining helps promote efficient combustion and improved heat reflection. An integrated airwash system directs airflow across the glass, helping to keep the viewing window cleaner for longer and maintaining an uninterrupted view of the flames.

Designed for modern homes

Beyond its traditional appearance, the Ashcott incorporates several practical features that improve day-to-day operation.

A magnetic door mechanism provides smooth and secure closing, while the stainless steel handle and precision air controls offer effortless adjustment of the fire. Primary and secondary air controls allow accurate regulation of the burn rate, making it easier to achieve comfortable room temperatures while maintaining efficient fuel consumption.

Each model also includes a direct external air connection as standard, making the stove suitable for modern, well-insulated homes where dedicated combustion air can improve efficiency and overall performance. An integrated ash pan further simplifies routine maintenance and cleaning.

Mendip Ashcott Wood Burning Stove Installation flexibility

The Ashcott range has been designed to accommodate a variety of installation requirements while maintaining the same compact footprint across all three models.

The standard stove measures 575mm high, while the Pedestal version increases overall height to 750mm and the Logstore model stands at 810mm. All three retain the same width of 424mm and depth of 370mm, allowing homeowners to choose the style that best suits their room without affecting the stove’s heating performance.

Clearance requirements include 150mm to combustible materials at the rear, 400mm at the sides, and 350mm above the appliance. An optional closed combustion connection with a 100mm external air outlet further enhances installation flexibility, particularly in newer, energy-efficient properties.

If you’re planning a new fireplace, our wood-burning stove installation process provides helpful guidance on what to expect. We also recommend professional stove installation to ensure safe operation, optimum performance, and compliance with current building regulations.

A versatile wood-burning stove for everyday living

The Mendip Ashcott range successfully combines attractive design, efficient heating, and practical versatility in a compact package. Whether you prefer the understated elegance of the standard model, the convenience of the integrated Logstore, or the contemporary styling of the Pedestal version, each stove delivers the same reliable performance and impressive environmental credentials.

With its A+ energy rating, EcoDesign compliance, Smoke Control approval On SE Version and not available on Non-SE Version, and thoughtful design details, the Ashcott is an excellent choice for homeowners looking to enjoy the character of a real wood fire while benefiting from modern efficiency and ease of use.

To find out more about what a professional installation involves, visit our installation process page. For full technical documentation directly from the manufacturer, visit the official Mendip product pages for the –

• Mendip Ashcott Standard Wood Burning Stove
• Mendip Ashcott Pedestal Wood Burning Stove
• Mendip Ashcott Logstore Wood Burning Stove
