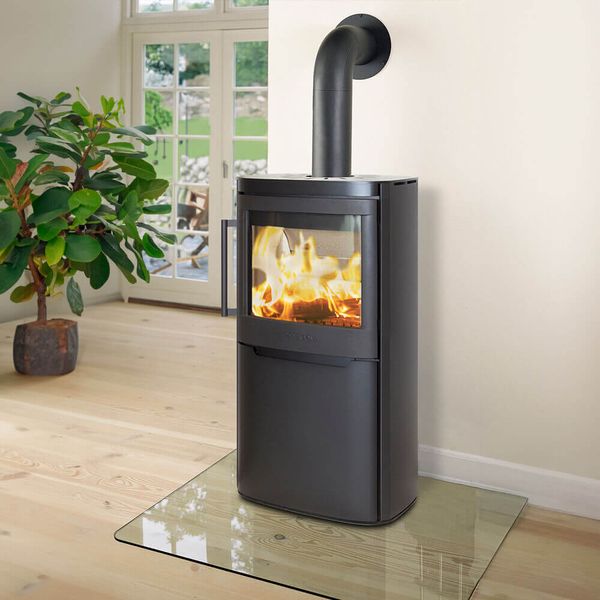

WIKING Pala 4 Wood Burning Stove — Powerful 7kW Performance with Intelligent Efficiency
The WIKING Pala 4 wood burning stove delivers strong 7kW heat output while combining advanced combustion technology for efficient and controlled home heating. Engineers in Scandinavia designed it to bring together precision and modern engineering. As a result, it performs reliably in larger living spaces.
Moreover, with an 80% efficiency rating and A energy class, the Pala 4 produces powerful heat without excessive fuel use. At the same time, it maintains clean combustion and responsible energy consumption. Therefore, it balances performance with sustainability.
WIKING® Autopilot™ — Intelligent Airflow Management
The WIKING® Autopilot™ system automatically controls airflow during ignition and re-stoking. Because of this, the fire operates under optimal combustion conditions without manual adjustment.
As a result, the stove improves fuel efficiency and lowers emissions. In addition, it keeps the burn consistently clean. Consequently, you experience stable heat output, better flame control, and easier day-to-day operation.
Combustion Air System — Clean and Efficient Burning
Efficient combustion requires a steady oxygen supply. For this reason, the WIKING Pala 4 uses a controlled combustion air system.
This system becomes especially useful in modern, well-insulated homes where airflow is limited. Because of this, the stove receives the right amount of oxygen at all times. As a result, it maintains efficient performance and supports a cleaner indoor environment.
High Heat Output with Reliable Performance
The Pala 4 produces a nominal heat output of 7kW. Therefore, it heats larger spaces effectively and consistently.
In addition, its balanced combustion system distributes heat evenly while maintaining a controlled flame. As a result, the room warms up efficiently without fluctuations. Furthermore, the 6” smoke outlet and recommended 12 Pa chimney draught support stable operation and smooth exhaust flow.
Certified Efficiency and Modern Compliance
The WIKING Pala 4 meets strict European standards, including EN 16510 and Ecodesign compliance. Therefore, it delivers low-emission and environmentally responsible performance.
In addition, its modern combustion design supports long-term efficiency and durability. Overall, it combines strong heating power with intelligent control. Ultimately, it provides a dependable and practical solution for everyday home comfort.
To find out more about what a professional installation involves, visit our installation process page. For full technical documentation directly from the manufacturer, visit the official HWAM product pages for the WIKING Pala 4.
WIKING Pala 4 Wood Burning Stove — Technical Specifications
Core Specifications
The following specifications apply to the WIKING Pala 4 wood burning stove.
| Specification | Detail |
|---|---|
| Nominal Output | 7.0 kW |
| Efficiency | 80% |
| Energy Efficiency Class | A |
| Combustion System | WIKING® Autopilot™ |
| Smoke Outlet Diameter | 6″ |
| Recommended Chimney Draught | 12.0 Pa |
| Combustion Chamber | 49.0 cm |
| External Air Intake (rear, Ø 100mm) | Available as additional purchase |
| External Air Intake (bottom, Ø 100mm) | Available as additional purchase |
| DEFRA / Ecodesign | Yes (Ecodesign compliant) |
| EN 16510 | Yes |
| EN 16510 Type CA | Yes |
Dimensions & Weight
| Specification | Detail |
|---|---|
| Height | 114.3 cm |
| Width | 63.0 cm |
| Depth | 40.6 cm |
| Weight (steel cladding, c/m door) | 135 kg |
| Flue Connection Height | 111.4 cm from floor to top outlet |
Clearances to Combustible Materials
| Position | Distance |
|---|---|
| Side | 25.0 cm |
| Sides (in front of stove) | 55.0 cm |
| In Front | 130.0 cm |
| Furnishing in Front | 130.0 cm |
| Behind (insulated flue) | 10.0 cm |
| Behind (uninsulated flue) | 25.0 cm |
| Corner (45°) | 15.0 cm |
| Mantelpiece | 65.0 cm |
| Ceiling | 65.0 cm |
