HWAM 3130 Stove — Curved Glass Danish Design with Smart Heating Technology
The HWAM 3130 Stove is a modern Danish wood burning unit designed for efficient home heating and stylish interiors. It produces strong and stable heat, so it easily keeps indoor spaces comfortable. The curved glass also gives a wide flame view, which naturally creates a warm atmosphere in the room.

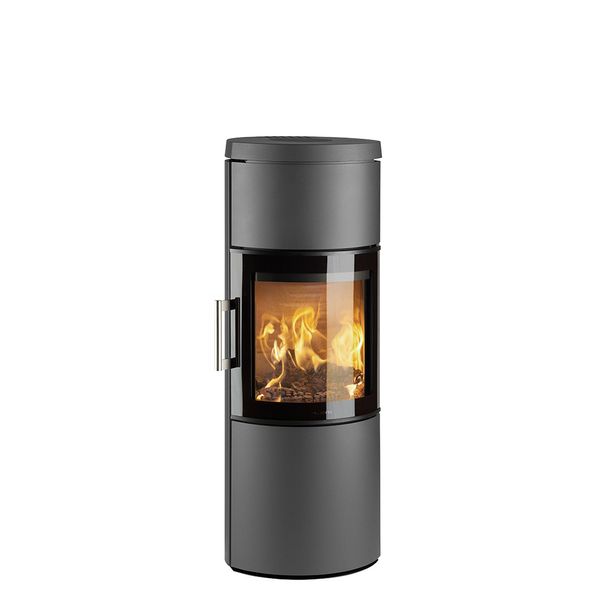

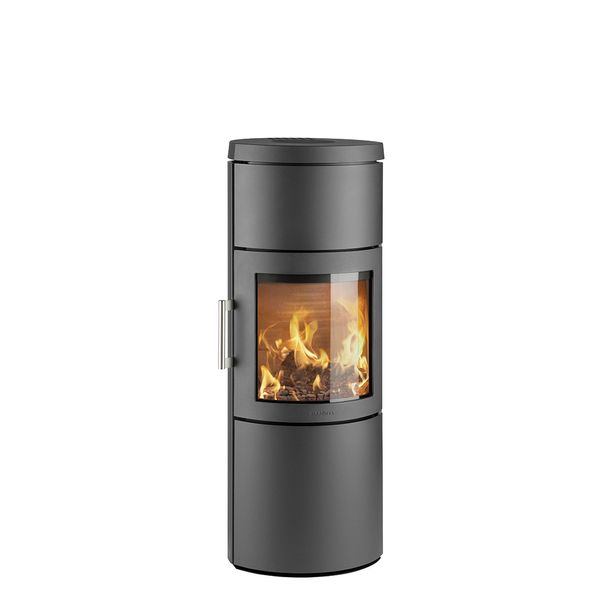

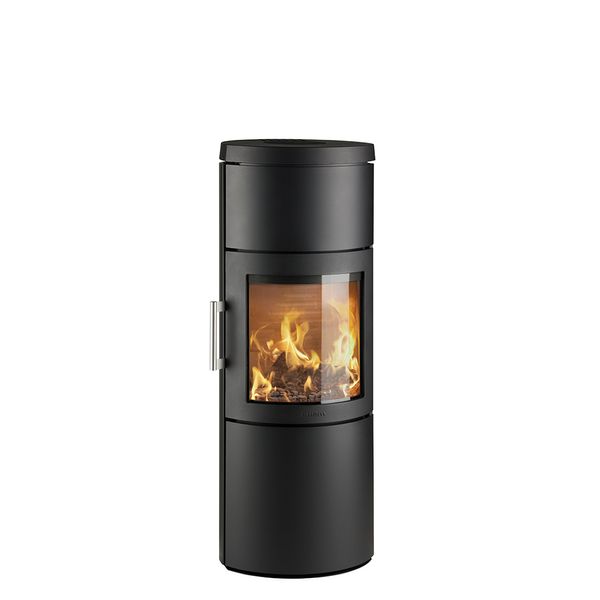

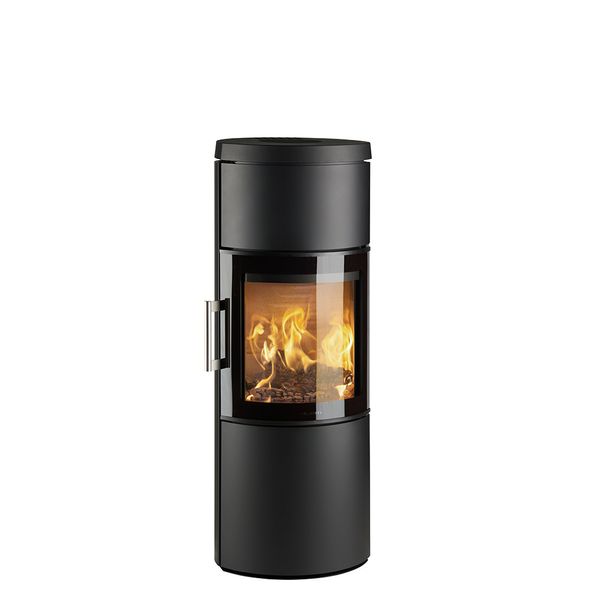

This model is offered in classic (C) and modern (M) versions, and it also comes in black and grey steel finishes. Because of these options, it fits well into different home styles and interior layouts.
HWAM 3130 Design & Comfort
The stove has an elliptical body that gives it a clean and elegant shape. Since the structure is slim, it can be placed in both small and large rooms without difficulty.
The design blends into the interior rather than standing out too strongly, so the room feels balanced. The curved glass also improves the view of the flames, which makes the space feel more comfortable and natural.
When everything comes together, the proportions help the stove sit well within modern living spaces while keeping the overall design calm and simple.
3130 Stove Heating Performance
This stove works with convection heating, so warmth spreads evenly across the room. As soon as it starts burning, heat begins to circulate, and the room gradually becomes comfortable.
The Airwash system keeps the glass cleaner during use, which means the flame remains visible without extra effort. While this happens, airflow stays steady, so heating remains consistent.
Because heat is distributed evenly, the room stays warm for longer periods without sudden changes in temperature.
HWAM Combustion Technology
The stove uses HWAM® Smart Control™ and HWAM® Autopilot™ systems, which manage airflow automatically. This helps the fire burn more cleanly and efficiently.
Smart Control reacts with sensors, while Autopilot adjusts based on heat changes inside the stove. Together, they keep combustion stable, so performance stays balanced during use.
Since fuel is used more efficiently, the stove produces less waste and maintains steady heat output over time.
3130 Installation & Flexibility
The stove supports both top and rear flue outlet options, so installation can be adjusted depending on the chimney setup. This makes it suitable for different homes and layouts.
It also supports fresh air connection, which is useful in airtight modern buildings. Because of this, performance stays stable even in energy-efficient homes.
Overall, the HWAM 3130 combines Danish craftsmanship with modern heating technology, making it a reliable choice for long-term use in different interior environments.
For installation guidance, visit our
installation process page.
You can also explore the official range on the
HWAM stove collection.
HWAM 3130 Stove — Technical Specifications
General Information
| Model | HWAM 3130 |
| Variants | 3130C (Classic) / 3130M (Modern) |
| Finish | Black / Grey Steel |
| Door Type | Classic (C) / Modern (M) |
Performance Data
| Nominal Heat Output | 4.5 – 4.8 kW |
| Efficiency | 79% (Autopilot) / 81% (Smart Control) |
| Energy Class | A / A+ |
| Combustion System | Smart Control / Autopilot |
| Chimney Draught | 11 – 12 Pa |
Product Measurements
| Specification | Classic (C) | Modern (M) |
|---|---|---|
| Height | 125.9 cm | 126.3 cm |
| Width | 47.5 cm | 47.5 cm |
| Depth | 41.2 cm | 41.2 cm |
| Combustion Chamber | 33 cm | 33 cm |
Weight
| Classic (C) | Approx. 110 kg |
| Modern (M) | Approx. 113 kg |
Installation Data
| Flue Outlet | Top / Rear |
| Flue Diameter | 5″ / 6″ |
| Fresh Air Kit | Optional Ø100 mm |
| Installation Type | Wall / Freestanding / Corner |
Clearance Requirements
| Rear | 7.5 – 12.5 cm |
| Side | 19.5 – 25.5 cm |
| Front | 100 – 105 cm |
| Mantel | 45 cm |
| Floor | Non-combustible base required |
Compliance
| Eco design | Yes |
| DEFRA | Yes |
| HETAS | Yes |
| EN 16510 | Yes |
| BImSchV | Stage 2 |
