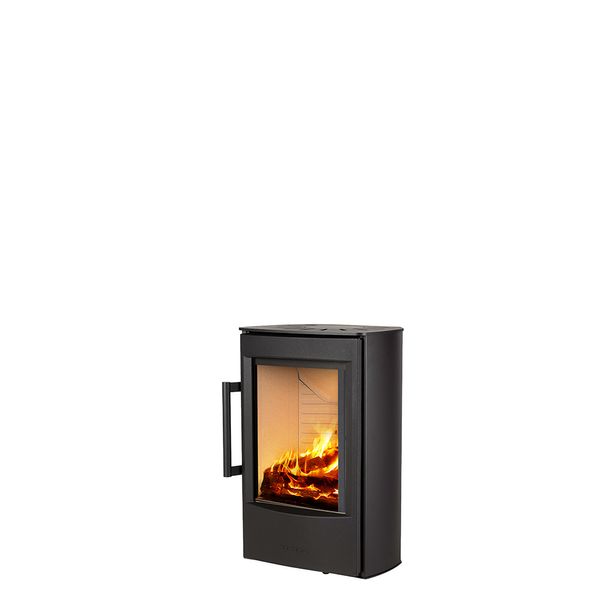

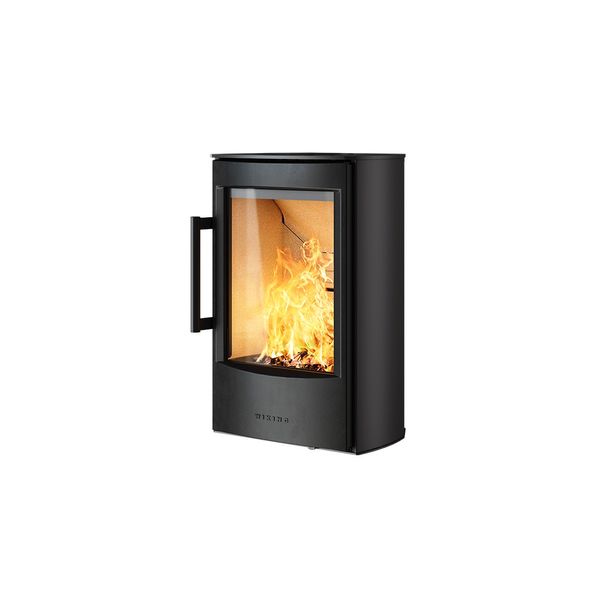

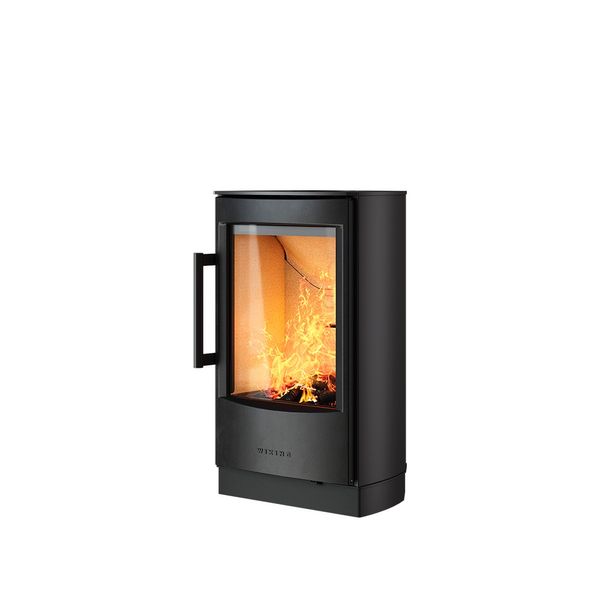

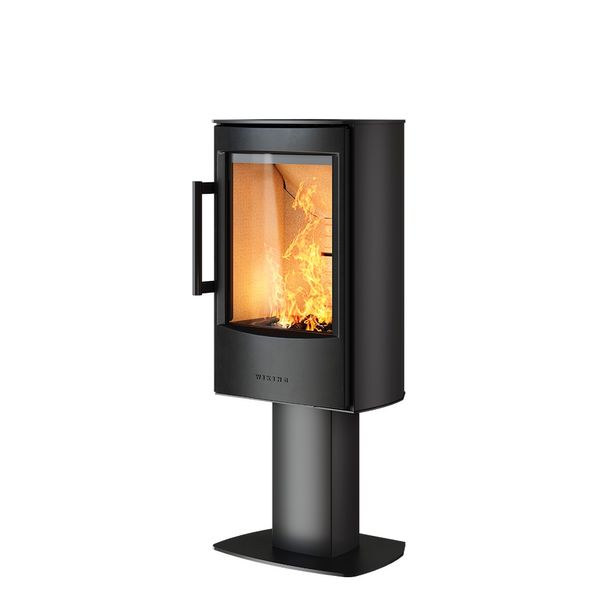

Wiking Miro 2

Technical specifications
TECHNICAL DATA
Energy efficiency class WIKING? Automatic?
A
WIKING? Automatic?
Yes
Efficiency (%)
78.0
Nominal heat output (kW)
4.9
Smokeoutlet (?)
6″
Chimney draught, recommended (Pa)
12.0
PRODUCT MEASUREMENTS (CM)
Height
78.2
Width
46.8
Depth
35.5
Combustionchamber
35.5
WEIGHT (KG)
Weight
82.0
CONNECTION MEASUREMENTS (CM)
From floor on a plinth, top
67.0
FRESH AIR KIT
Combustion air system can be mounted, back (? 100 mm)
Yes
Combustion air system can be mounted, back (? 100 mm)
Yes
DISTANCE TO COMBUSTIBLE MATERIALS (CM)
Floor
7.0
DISTANCE TO COMBUSTIBLE MATERIALS, INSULATED FLUE GAS PIPE (CM)
Behind
10.0
Side
31.0
Sides, in front of the stove
31.0
In front
90.0
Furnishing in front
90.0
Corner, 45?
10.0
DISTANCE TO COMBUSTIBLE MATERIALS, UNINSULATED FLUE GAS PIPE (CM)
Behind
10.0
Side
31.0
Sies, in front of the stove
31.0
In front
90.0
Furnishing in front
90.0
Corner, 45?
10.0
APPROVALS
EN 13240
Yes
NS 3058/3059
Yes
DEFRA Exempt
Yes
ECODESIGN Compliant
