WIKING Wood Burning Stove — Intelligent 7kW Performance with WIKING® Automatic™
The WIKING wood burning stove combines powerful 7kW heat output with advanced Danish engineering to deliver efficient, clean, and beautifully controlled heating. Designed by HWAM, this model features the innovative WIKING® Automatic™ combustion system, ensuring optimal performance without the need for constant manual adjustment.
With an A+ energy efficiency rating and 81% efficiency, it offers a refined balance of performance and environmental responsibility. As a result, it is ideally suited to modern homes looking for both reliability and ease of use.
WIKING® Automatic™ — Smarter Combustion, Better Results
At the core of this stove is the WIKING® Automatic™ system, which intelligently regulates airflow during both lighting and re-stoking. Instead of manually adjusting air controls, the stove manages combustion for you, maintaining the ideal burn conditions throughout the entire cycle.
This not only improves fuel efficiency but also ensures a cleaner burn with reduced emissions and fewer deposits in the flue. In everyday use, this means less effort, more consistent heat, and a noticeably improved flame picture.
Combustion Air System — Designed for Modern Living
Effective combustion depends on a steady supply of oxygen. For this reason, the WIKING wood burning stove can be fitted with an external combustion air system, allowing air to be drawn directly from outside the property.
This is particularly beneficial in well-insulated or airtight homes, where internal air supply may be limited. By maintaining a controlled airflow, the stove performs efficiently while supporting a more comfortable indoor environment.
Flexible Installation Options

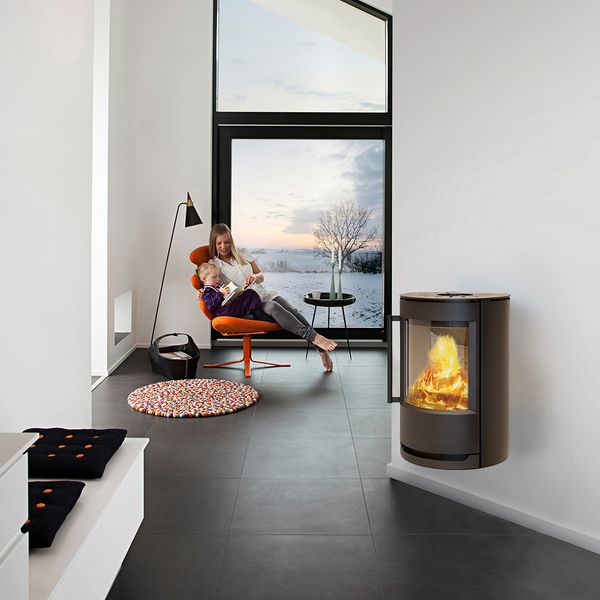

This model is designed to integrate seamlessly into a wide range of interiors. With a wall-mounted configuration available, it offers a contemporary floating appearance while also freeing up floor space beneath the stove.
For more information on what installation involves, you can visit our
stove installation process guide.
WIKING Wood Burning Stove — Technical Specifications
Core Specifications
| Specification | Detail |
|---|---|
| Energy Efficiency Class | A+ |
| WIKING® Automatic™ | Yes |
| Efficiency | 81% |
| Nominal Heat Output | 7.0 kW |
| Smoke Outlet (Ø) | 6″ |
| Chimney Draught (Recommended) | 12.0 Pa |
| Combustion Chamber | 36.5 cm |
| Weight (Steel Cladding, c/m door) | 114 kg |
| External Air Intake (Rear Ø100mm) | Yes (additional purchase) |
| External Air Intake (Bottom Ø100mm) | Yes (additional purchase) |
| Combustion System | WIKING® Automatic™ |
| DEFRA Exempt | Yes |
| Ecodesign Compliant | Yes |
| EN 16510 | Yes |
| EN 16510 Type CA | Yes |
| BImSchV Stufe 2 | Yes |
Product Measurements
| Specification | Detail |
|---|---|
| Height | 80.1 cm |
| Width | 53.8 cm |
| Depth | 46.0 cm |
| Flue Connection (Wall to Centre of Top Outlet, Wall Mounted) | 76.2 cm |
Distance to Combustible Materials
| Position | Distance |
|---|---|
| Mantelpiece | 55.0 cm |
| Floor | 29.0 cm* |
| Ceiling | 60.0 cm |
| Behind (Insulated Flue) | 12.5 cm |
| Behind (Uninsulated Flue) | 25.0 cm |
| Side | 45.0 cm |
| Sides (in front of stove) | 62.5 cm |
| In Front | 125.0 cm |
| Furnishing in Front | 125.0 cm |
| Corner (45° insulated) | 7.5 cm |
| Corner (45° uninsulated) | 16.5 cm |
* This distance requirement is met when the wood-burning stove is hung on the wall with the required installation clearance below the stove.
