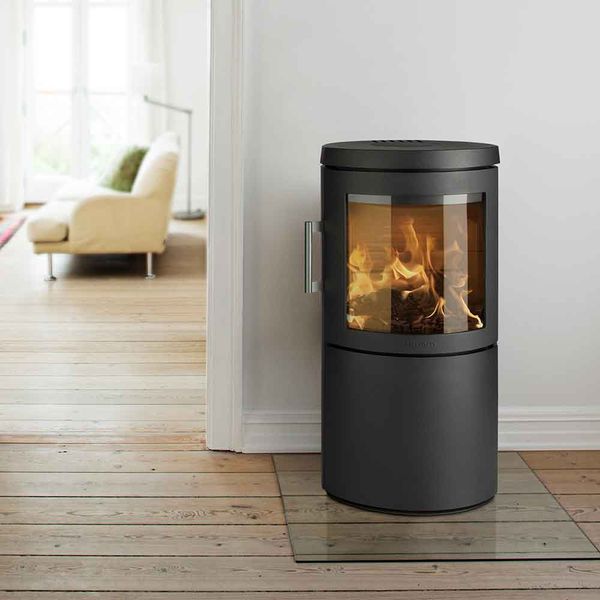

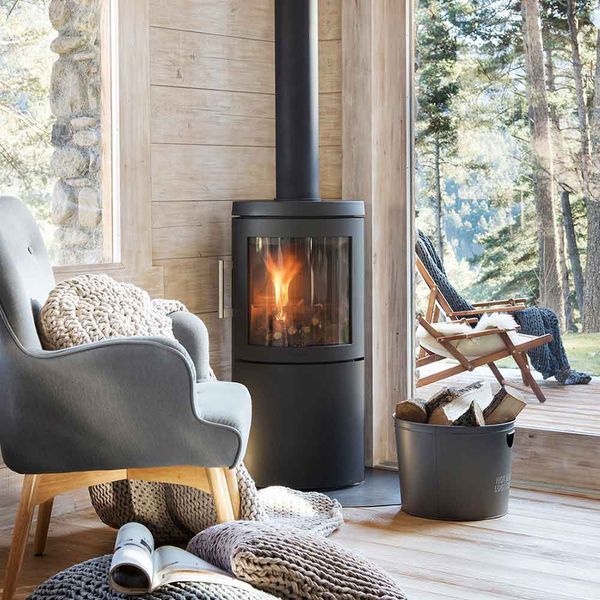

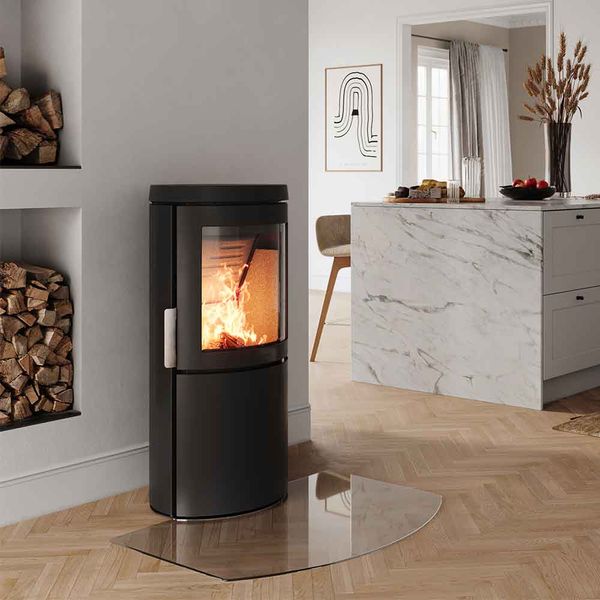

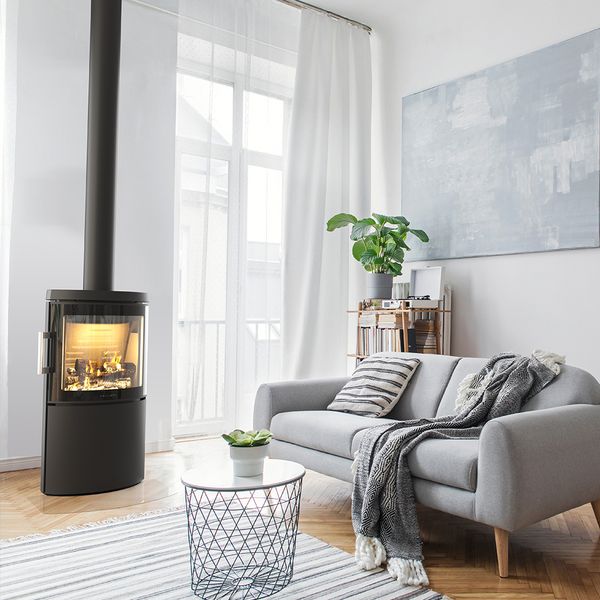

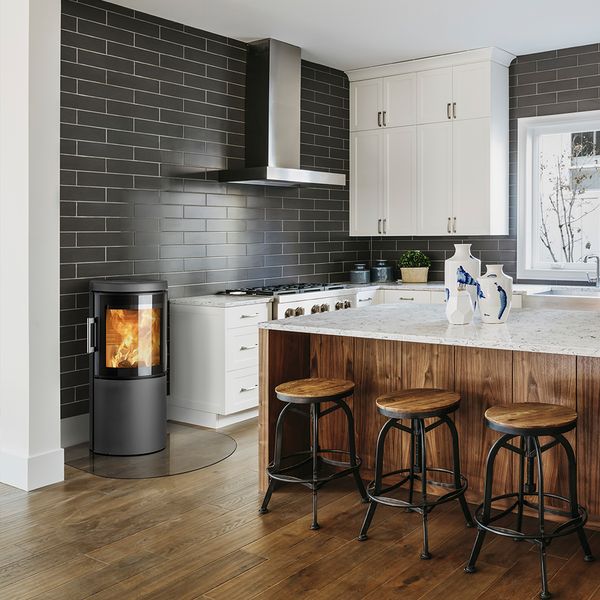

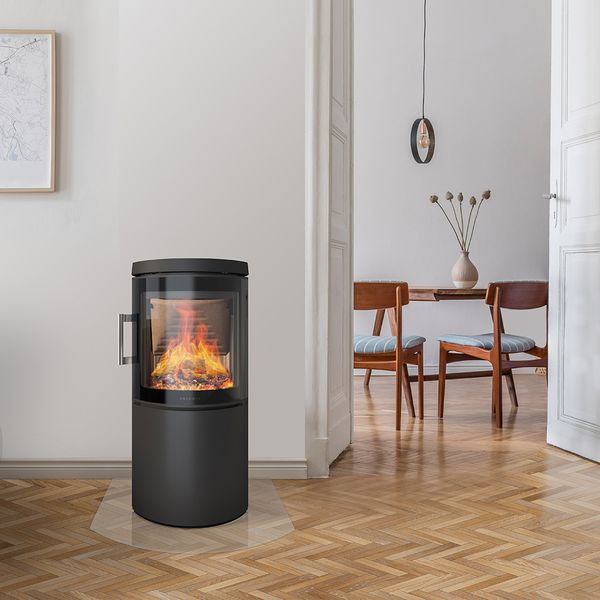

HWAM 3120 Stove — Curved Glass Design with Intelligent Heat Control
The HWAM 3120 Stove is a modern Danish wood burning stove designed for efficient and simple home heating. Moreover, it delivers strong performance and a clean flame view for everyday use. As a result, it becomes a reliable heating solution for modern homes.
In addition, this stove fits wall mounted, pedestal, and plinth installations. Therefore, it adapts easily to different home layouts and interior styles. Furthermore, it ensures flexible placement in various room types.
Design & Comfort
Firstly, the stove features a curved glass door that provides a wide view of the flames. As a result, it creates a warm and relaxing atmosphere in any room. In addition, the design improves visual comfort.
Moreover, its slim and modern shape allows easy placement in both small and large spaces. Consequently, it blends well with different interior designs. Therefore, it suits both compact and large homes.
Heating Performance
In addition, this wood burning stove uses convection heating to spread warmth evenly across the room. As a result, the space heats up faster and stays comfortable for longer. Moreover, heat distribution remains stable.
Furthermore, the Airwash system helps keep the glass clean. Therefore, you always enjoy a clear view of the fire. As a result, maintenance becomes easier.
Combustion System
Importantly, the stove comes with HWAM® SmartControl™ and HWAM® Autopilot™. Therefore, both systems automatically regulate airflow for efficient and clean combustion. In addition, this improves fuel efficiency.
Furthermore, SmartControl offers electronic adjustment, while Autopilot responds mechanically to heat changes. As a result, fuel use is optimized and performance stays stable. Moreover, combustion becomes more consistent.
Installation Flexibility
Moreover, the stove supports both top and rear flue outlet options. Therefore, it can be installed in different chimney setups with ease. In addition, it supports flexible installation planning.
Furthermore, optional fresh air kits make it suitable for modern airtight homes. As a result, installation is flexible and future-proof. Therefore, it works well in modern buildings.
Finally, this model combines advanced heating technology with elegant Danish design. As a result, it is suitable for both modern and traditional interiors.
For installation guidance, visit our installation process page. In addition, you can explore the official range on the HWAM stove collection.
HWAM 3120 Wood Burning Stove — Technical Specifications
General Notes — HWAM 3120 Wood Burning Stove
The following specifications apply equally to all HWAM 3120 Wood Burning Stove models. Moreover, they remain valid regardless of control system or door configuration. In addition, all variants follow the same core structure.
Door description: c = classic door, m = modern door
Handle options: Traditional handle, Style handle (stainless steel), Style handle (black)
Performance Specifications — Autopilot vs SmartControl
Furthermore, the following specifications apply equally to all HWAM 3120 configurations. Therefore, performance remains consistent across models.
| Specification | HWAM® Autopilot™ | HWAM® SmartControl™ |
|---|---|---|
| Energy Efficiency Class | A | A+ |
| Nominal Heat Output | 4.8 kW | 4.5 kW |
| Efficiency | 79% | 81% |
| Recommended Chimney Draught | 12.0 Pa | 11.0 Pa |
| Combustion System | HWAM® Autopilot™ | HWAM® Smart Control™ |
Product Dimensions — HWAM 3120 Wood Burning Stove
In addition, the following dimensions apply to all variants of the HWAM 3120 stove. As a result, installation planning becomes easier.
| Height | 100.4 cm |
| Width | 47.7 cm |
| Depth | 40.8 cm |
| Combustion Chamber | 33.0 cm |
| Weight | 107 kg |
| Smoke Outlet Diameter | 5″ / 6″ |
Installation & Connection Measurements
Moreover, installation measurements differ slightly between systems. Therefore, proper planning is important.
| Specification | Autopilot™ | SmartControl™ |
|---|---|---|
| From Floor (Top Outlet) | 94.8 cm | 97.5 cm |
| Fresh Air Kit (Rear Ø100 mm) | Yes (additional purchase) | Yes (additional purchase) |
| Fresh Air Kit (Bottom Ø100 mm) | Yes (additional purchase) | Yes (additional purchase) |
Clearance to Combustible Materials
Similarly, clearance values vary depending on system type. Therefore, installation safety is ensured.
| Measurement | Autopilot™ | SmartControl™ |
|---|---|---|
| Behind (insulated flue) | 7.5 cm | 7.5 cm |
| Behind (uninsulated flue) | 12.5 cm | 10.0 cm |
| Side | 22.0 cm | 19.5 cm |
| In Front | 105.0 cm | 100.0 cm |
| Mantelpiece | 45.0 cm | 45.0 cm |
| Floor | 0.0 cm | 0.0 cm |
Approvals & Compliance
Finally, all models meet strict European safety and efficiency standards. As a result, they ensure safe and reliable use.
| DEFRA Exempt | Yes |
| Ecodesign Compliant | Yes |
| HETAS Approved | Yes |
| EN 16510 | Yes |
| BImSchV Stufe 2 | Yes |
