Technical specifications
TECHNICAL DATA
Energy efficiency class WIKING? Automatic?
A
WIKING? Automatic?
Yes
Efficiency (%)
78.0
Nominal heat output (kW)
4.9
Smokeoutlet (?)
6″
Chimney draught, recommended (Pa)
12.0
PRODUCT MEASUREMENTS (CM)
Height
131.4
Width
46.8
Depth
35.6
Combustionchamber
35/32
WEIGHT (KG)
Weight
97.0
Heat storage stones
34.0
CONNECTION MEASUREMENTS (CM)
From floor with lowe door, top
97.0
FRESH AIR KIT
Combustion air system can be mounted, back (? 100 mm)
Yes
Combustion air system can be mounted, back (? 100 mm)
Yes
DISTANCE TO COMBUSTIBLE MATERIALS, INSULATED FLUE GAS PIPE (CM)
Behind
10.0
Side
31.0
Sides, in front of the stove
31.0
In front
90.0
Furnishing in front
90.0
Corner, 45?
10.0
DISTANCE TO COMBUSTIBLE MATERIALS, UNINSULATED FLUE GAS PIPE (CM)
Behind
10.0
Side
31.0
Sies, in front of the stove
31.0
In front
90.0
Furnishing in front
90.0
Corner, 45?
10.0
APPROVALS
EN 13240
Yes
NS 3058/3059
Yes
DEFRA Exempt
Yes
ECODESIGN Compliant Yes
Wiking Mini 6
Price range: £2,095.00 through £3,145.00

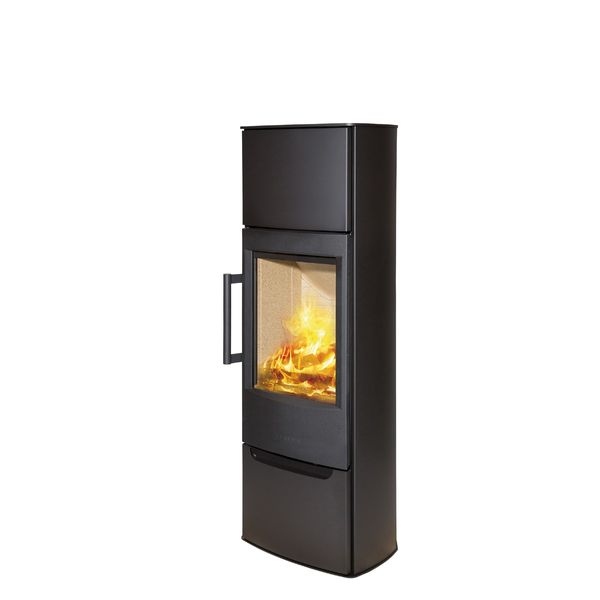

The WIKING Miro 6 is designed with a heat storage compartment which can be filled with natural stone. Natural stone has a special ability to store heat from the wood-burning stove, which will then slowly be emitted into the room. While the wood-burning stove is burning, the stone in the heat storage compartment will be heated up. Once the fire in the combustion chamber has died, the stone will continue emitting the stored heat into the room.

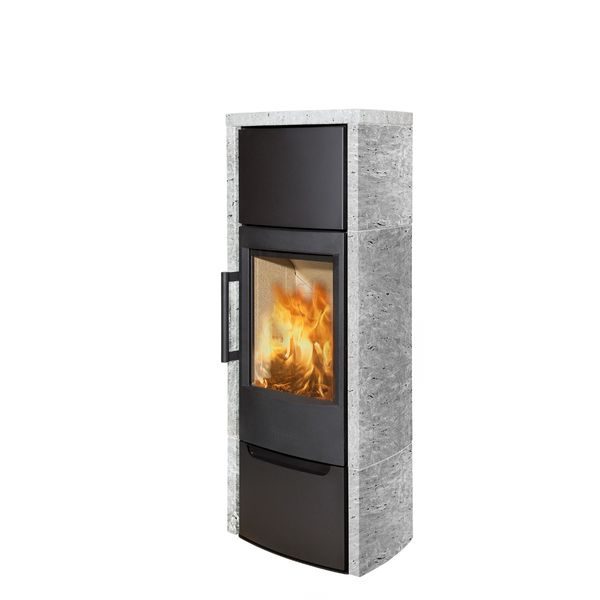

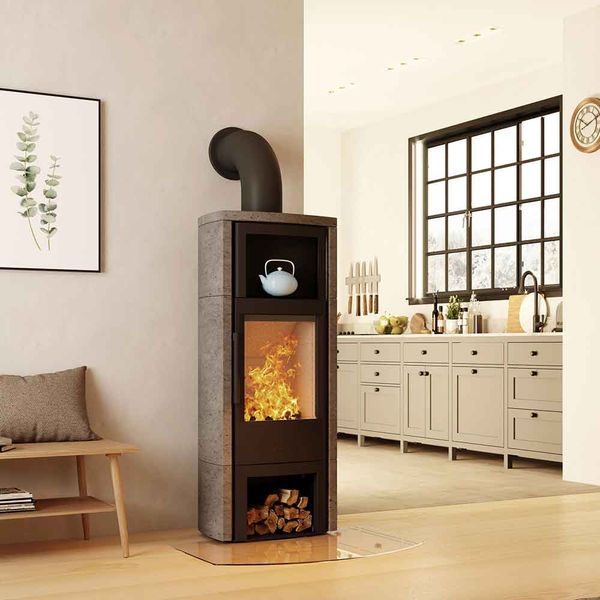

WIKING Miro 6 is also available with natural stone cladding which, in addition to storing the heat from the stove, is also decorative and exclusive cladding for this model.
| Weight | 97 kg |
|---|---|
| Door | Lower Door, Natural stone cladding grey or white- with lower door, Natural stone cladding grey or white- with wood store, Wood Store |
Brand
WIKING
