Technical specifications
TECHNICAL DATA
Energy efficiency class WIKING? Automatic?
A +
WIKING? Automatic?
Yes
Efficiency (%)
83.0
Nominal heat output (kW)
4.5
Smokeoutlet (?)
6″
Chimney draught, recommended (Pa)
12.0
PRODUCT MEASUREMENTS (CM)
Height
89.2
Width
46.8
Depth
36.0
Combustionchamber
35.0/32.0
WEIGHT (KG)
Weight
84.0
CONNECTION MEASUREMENTS (CM)
From floor with wood store, top
85.0
FRESH AIR KIT
Combustion air system can be mounted, back (? 100 mm)
Yes
Combustion air system can be mounted, back (? 100 mm)
Yes
DISTANCE TO COMBUSTIBLE MATERIALS (CM)
Mantel piece
45.0
DISTANCE TO COMBUSTIBLE MATERIALS, INSULATED FLUE GAS PIPE (CM)
Behind
7.5
Side
32.5
Sides, in front of the stove
32.5
In front
100.0
Furnishing in front
100.0
Corner, 45?
5.0
DISTANCE TO COMBUSTIBLE MATERIALS, UNINSULATED FLUE GAS PIPE (CM)
Behind
12.5
Side
32.5
Sies, in front of the stove
32.5
In front
100.0
Furnishing in front
100.0
Corner, 45?
7.5
APPROVALS
EN 13240
Yes
NS 3058/3059
Yes
DEFRA Exempt
Yes
ECODESIGN Compliant Yes
Wiking Mini 4
£1,745.00 – £1,795.00

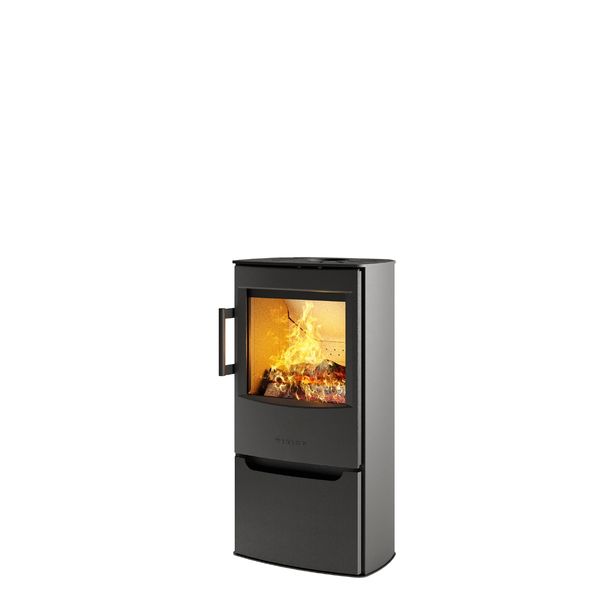

WIKING Mini 4 is a stylish and environmentally friendly wood-burning stove for smaller homes or holiday homes and even energy-efficient houses – the model comes in two beautiful variants:
? With wood storage (Height of the stove 89.2cm)
? With lower door (Height of the stove 89.2cm)
This small wood burning stove has a classic rectangular shape and with its slightly curved sides it has a modern expression. The door is equipped with a large glass window that ensures an optimum view of the flames. WIKING Mini is the smallest wood burning stove in the WIKING family, also in terms of kilowatt output. It is very well suited for smaller rooms, holiday homes, energy-efficient houses or areas where there is limited space.
| Weight | 84 kg |
|---|---|
| Flue | 5", 6" |
| Door | Lower Door, Wood Store |
Brand
WIKING
